Ex dehumidifier series

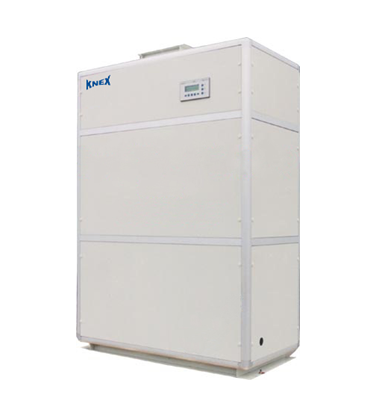

BCS-Explosion-proof dehumidifier (air-cooled fixed temperature type)

Brief introduction:


●BCS-□explosion-proof dehumidifier is certified by the national CQST explosion-proof, and can be used in hazardous area Zone 1 and Zone 2 locations classified by GB3836.14.

●Applicable to petroleum, chemical, military, power, marine and other industries under the normal working environment in accordance with GB3836.1: IIA, IIB, IIC category, temperature group T1 ~ T4 group of explosive gas mixture electrical control room , Operation room, driller room, analysis huts, production workshops, dangerous goods warehouses and other places for humidity control purposes.


Product details

◎ Refrigeration system, control system and fans are all made of brand-name products and high quality materials;

◎ Explosion-proof structure design and manufacturing The perfect combination of safety and functionality, components using a variety of forms of explosion-proof structure, the whole explosion-proof structure for the composite composition;

◎ unit shell spray anti-static coating;

◎ The heat exchanger adopts aluminum thread fins with inner thread copper tube and hydrophilic membrane.

◎ A variety of parameters, such as temperature and humidity, fault information, etc., and have a variety of safety protection, such as motor overload, compressor overload, high and low pressure.


Options under different operating conditions:

◎ shell material: stainless steel (S304, S316L);

◎ heat exchanger: female copper sleeve copper fins;

◎ heat exchanger plus anti-corrosion coating;

◎ Marine standards are manufactured according to DNV, ABS;

◎ Refrigerant: R22, R410A, R407C;

◎ remote control.

◎Air outlet method: direct-blow type, air-duct type.

◎Provide solutions for special requirements products.
